Chirp CWT with Ricker

In this example, we analyze a chirp signal with a Ricker (a.k.a. Mexican Hat wavelet)

# Configure JAX to work with 64-bit floating point precision.
from jax.config import config
config.update("jax_enable_x64", True)

Let’s import necessary libraries

import jax
import numpy as np
import jax.numpy as jnp
# CR-Suite libraries
import cr.wavelets as wt
from cr.nimble.dsp import power_spectrum
# Utility functions to construct sinusoids
import cr.nimble.dsp.signals as signals
# Plotting
import matplotlib.pyplot as plt

Test signal generation

Sampling frequency in Hz

fs = 100
# Signal duration in seconds
T = 10
# Initial instantaneous frequency for the chirp
f0 = 1
# Final instantaneous frequency for the chirp
f1 = 4
# Construct the chirp signal
t, x = signals.chirp(fs, T, f0, f1, initial_phase=0)
# Plot the chirp signal
fig, ax = plt.subplots(figsize=(12, 4))
ax.plot(t, x)
ax.grid('on')

Power spectrum

# Compute the power spectrum
f, sxx = power_spectrum(x, dt=1/fs)
# Plot the power spectrum
fig, ax = plt.subplots(1, figsize=(12,4))
ax.plot(f, sxx)
ax.grid('on')
ax.set_xlabel('Frequency (Hz)')
ax.set_ylabel('Power')

Text(99.59722222222221, 0.5, 'Power')

As expected, the power spectrum is able to identify the frequencies in the zone 1Hz to 4Hz in the chirp. However, the spectrum is unable to localize the changes in frequency over time.

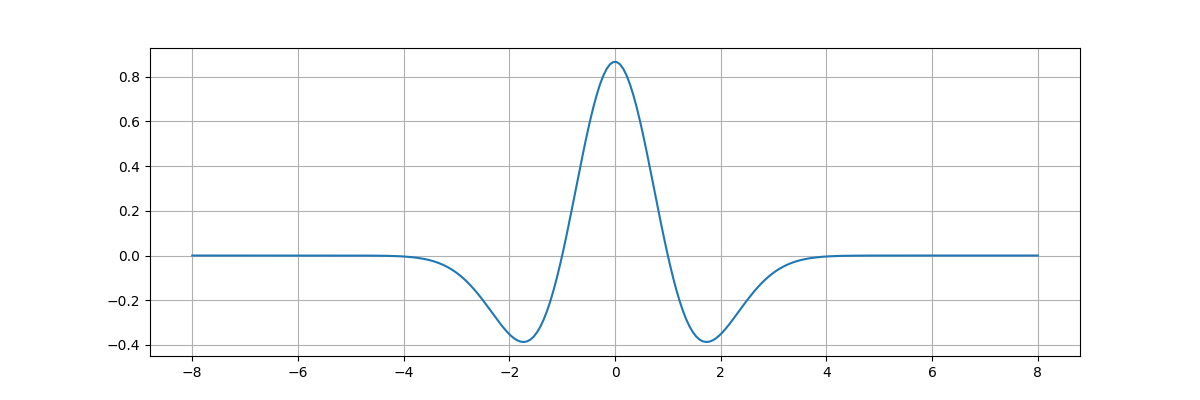

Ricker/Mexican Hat Wavelet

wavelet = wt.build_wavelet('mexh')
# generate the wavelet function for the range of time [-8, 8]
psi, t_psi = wavelet.wavefun()
# plot the wavelet
fig, ax = plt.subplots(figsize=(12, 4))
ax.plot(t_psi, psi)
ax.grid('on')

Wavelet Analysis

select a set of scales for wavelet analysis voices per octave

nu = 8
scales = wt.scales_from_voices_per_octave(nu, jnp.arange(32))
scales = jax.device_get(scales)
# Compute the wavelet analysis
output = wt.cwt(x, scales, wavelet)
# Identify the frequencies for the analysis
frequencies = wt.scale2frequency(wavelet, scales) * fs
# Plot the analysis
cmap = plt.cm.seismic
fig, ax = plt.subplots(1, figsize=(10,10))

title = 'Wavelet Transform (Power Spectrum) of signal'
ylabel = 'Frequency (Hz)'
xlabel = 'Time'

power = (abs(output)) ** 2
levels = [0.0625, 0.125, 0.25, 0.5, 1, 2, 4, 8]
contourlevels = np.log2(levels)

im = ax.contourf(t, jnp.log2(frequencies), jnp.log2(power), contourlevels, extend='both',cmap=cmap)

ax.set_title(title, fontsize=20)
ax.set_ylabel(ylabel, fontsize=18)
ax.set_xlabel(xlabel, fontsize=18)

yticks = 2**np.arange(np.ceil(np.log2(frequencies.min())), np.ceil(np.log2(frequencies.max())))
ax.set_yticks(np.log2(yticks))
ax.set_yticklabels(yticks)
ylim = ax.get_ylim()
